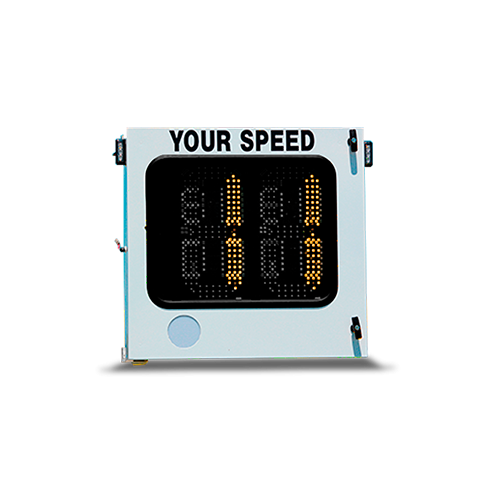

Speed Monitor F Speed Display

More visibility with 18" digits

Slow traffic without police presence

Speed Guardian controls speeds without requiring the presence of a police officer. Self-monitoring of speeds creates slows traffic without issuing tickets, and promotes positive attitudes in the public.

Confidence in the displayed speeds is enhanced by MPH’s exclusive distance-measuring technology. The fourth-generation radar used in the sign eliminates false speeds generated by opposite-direction traffic. This radar also allows the Speed Guardian, when equipped with our SpeedView traffic computer, to make extremely accurate traffic counts without the need for road tubes.

Specifications

RADAR Display Dimensions

32.5" W x 31.5" H x 9.0" D

Weight

80 lbs

Display

18" amber LED display with two digits. Vandal resistant Lexan® clear display window

Traffic Data Collection (optional)

Conduct traffic studies with MPH SpeedView™ traffic analysis software
Power
AC mains power input from 100 to 240 VAC Optional Solar panel with gel cell battery mounted in the display case with 2-day reserve capacity
Finish
Rust resistant undercoat with graffiti resistant powder coat
RADAR
Directional K-band 24.125 GHz. Horizontal Beamwidth: 12° ± 1° Target speeds from 1 to 150 mph (1 to 241 km/h)
Read More

How Can We Help?

Fill out the form to contact a local sales representative or to get a quote.

Request Quote

Protecting your community

Our Speed Monitor F (Pole Mounted Speed Display) includes 18” characters, highly visible amber LEDs and a flashing character overspeed violator alert. This rugged and durable piece of equipment can be easily mounted to a variety of poles and includes a K-band directional radar. This allows the display of oncoming drivers’ speeds while allowing the optional SpeedView to collect data of both approaching and receding targets.

Features

  • 18″ two-digit, super-bright Amber LED speed display with an optional third digit for metric operation
  • Red, operator controlled “SLOW DOWN” message when speed limit is exceeded
  • Radar, speed display, and power supply
  • Automated speed control
  • Vandal-resistant
  • Power supply options (110V - 220V hardwire, battery or battery with solar panel)
  • No false speeds due to opposite direction traffic
  • Optional Bluetooth communication
