Crossing Guardian Speed Display

Easily portable traffic calming, when and where it’s needed

School crossings or special events

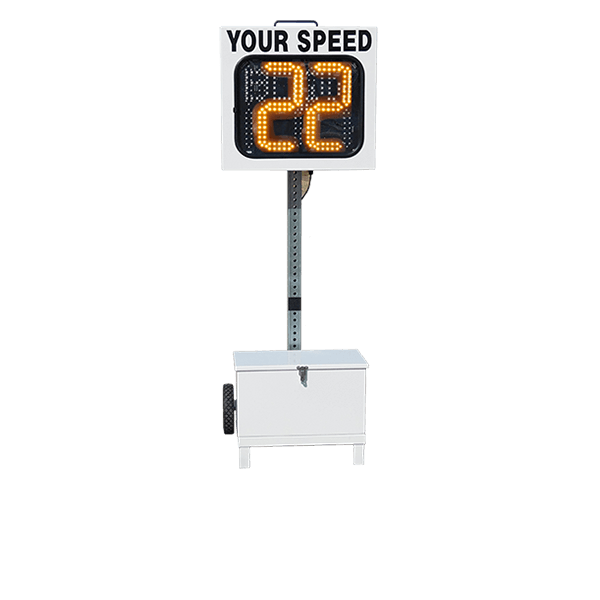

The Crossing Guardian is designed for use by crossing guards and in other temporary applications. It is small enough to be easily wheeled to the site, operated, and then wheeled back when not needed. Typical drivers reduce their speed by five to seven mph when they see their speed, thereby increasing pedestrian safety.

Specifications

Radar Display Dimensions

22" W x 18" H x 7" D

Lockable battery box

Attached wheels for easy transport. Deep cycle battery with built-in battery charger.

Display

12" Amber LED display with two digits with vandal-resistant Lexan® clear display window

Standard T-post sign post

Easily mount school zone, or your choice of signs
Description
Fixed location speed display sign with self‐contained, one direction radar.
Display
Two, 12 inch high digits (2½ digit version also available) Constructed with super bright amber LEDs
Housing
Powder‐coated aluminum enclosure with lockable access door
Scratch resistant Margard® Lexan® display window
Weatherproof to NEMA 4 rating
Radar Specifications
K‐band Approach‐Only traffic radar (1000 feet range)
Type accepted under FCC Part 15
System Specifications
User supplied 13.8V DC ± 20% (standard automotive voltage)
Operating current less than 1 amps
Operating temperature range of 160ºF to ‐22ºF
Width: 22 inches
Height: 18 inches
Depth: 7 inches
Weight: 22 pounds
Power
12 V deep cycle battery with built-in 110 V charger
Battery storage
Vandal resistant with wheels
Sign post
T- post for easy mounting of additional signage
Read More

How Can We Help?

Fill out the form to contact a local sales representative or to get a quote.

Request Quote

A special version of the unit, known as the Speed Trolley or Speed Monitor Trolley, has been designed to meet all European standards, and is widely used in Europe.

The unit is weatherproof, has a heavy-duty construction, and has an internal battery with AC recharger. Optional signage (speed limit, pedestrian crossing, etc.) is available, as well as an optional SpeedView™ traffic analyzer.

Features

  • Approach-only distance measuring speed radar
  • 12" (31 cm) two-digit, super-bright LED speed display
  • Radar, speed display, and power supply
  • Automated speed control
  • Vandal-resistant
  • 12 V deep cycle battery with built-in charger
