Speed Guardian Speed Display

For traffic calming and pedestrian safety

Safer Roads – And Happier Drivers

Speed Guardian controls speeds without requiring a the presence of a police officer. Self-monitoring of speeds creates slows traffic without issuing tickets, and promotes positive attitudes in the public. Confidence in the displayed speeds is enhanced by MPH’s exclusive distance-measuring technology. The fourth-generation speed sensor used in the sign eliminates false speeds generated by opposite-direction traffic.

Specifications

Radar Display Dimensions

22" W x 18" H x 7" D

Weight

22 lbs

Display

12” Amber LED display with two digits with vandal-resistant Lexan® clear display window

Optional Speed Sign

MUTCD compliant 18" x 24" sign with interchangeable placards
Description
Fixed location speed display sign with self‐contained, one direction radar.
Display
Two, 12 inch high digits (2½ digit version also available) Constructed with super bright amber LEDs
Housing
Powder‐coated aluminum enclosure with lockable access door
Scratch resistant Margard® Lexan® display window
Weatherproof to NEMA 4 rating
Radar Specifications
K‐band Approach‐Only traffic radar (1000 feet range)
Type accepted under FCC Part 15
System Specifications
User supplied 13.8V DC ± 20% (standard automotive voltage)
Operating current less than 1 amps
Operating temperature range of 160ºF to ‐22ºF
Width: 22 inches
Height: 18 inches
Depth: 7 inches
Weight: 22 pounds
Accessories and Options
User supplied 13.8V DC ± 20% (standard automotive voltage)
Operating current less than 1 amps
Operating temperature range of 160ºF to ‐22ºF
Width: 22 inches
Height: 18 inches
Depth: 7 inches
Weight: 22 pounds
Read More

How Can We Help?

Fill out the form to contact a local sales representative or to get a quote.

Request Quote

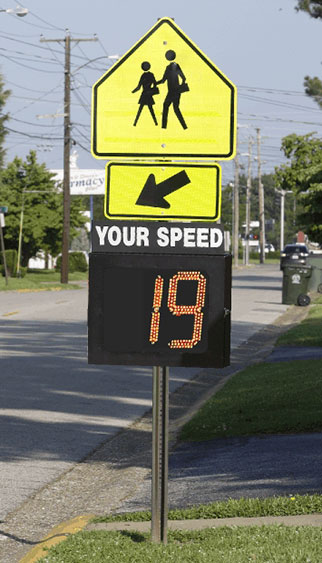

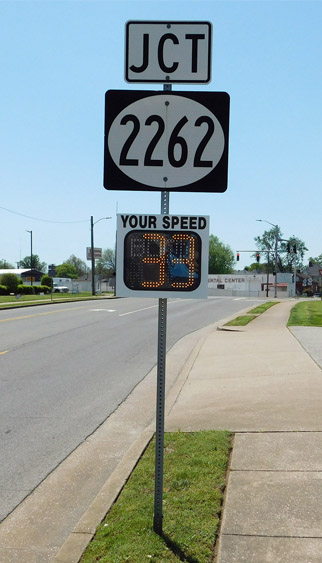

The Speed Guardian is self-contained and mounts quickly on an existing pole. Speed Guardian has 12-inch speed digits, which use super-bright LEDs for optimum viewing in bright sunlight. The display digits dim automatically for night operation. Speed Guardian can be operated from 110 VAC power or from a solar panel. When equipped with optional SpeedView Traffic Analysis software, you can record and perform traffic studies without the need for additional equipment.

Features

  • Approach-only distance measuring speed radar
  • 12″ (31 cm) two-digit, super-bright LED speed display
  • Radar, speed display, and power supply
  • Automated speed control
  • Vandal-resistant
  • Power supply options (12 volt DC, 120 volt AC, or solar power options available)
  • Small and light
