ranger-ez

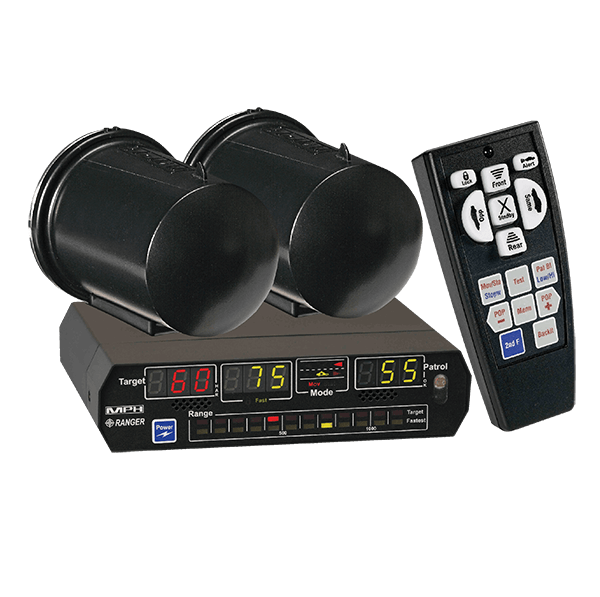

Ranger EZ

Dash Mounted RadarRanging Directional Traffic Radar

Ranger EZ is the only ranging directional traffic radar on the market. Using MPH’s unique Advanced Target Identification™ technology, the Ranger EZ confirms your visual traffic observations by accurately pinpointing the strongest target, the fastest target, target directions, target distances, and targets in opposite and same-direction traffic. This technology prevents mistakes and allows for positive identification.

Specifications

Ranging traffic radar

displays fastest target with distance to target

Rear alert feature

provides officer safety during traffic stops

A waterproof version of the display unit and remote control is available for motorcycle use

Doppler audio signals from the strongest and fastest targets are broadcast by two separate speakers to allow distinction between the two

Nominal Power Supply Voltage
13.6 Vdc
Stationary Operating Speed
Stationary mode operating speed range is from 15 mph up to 200 mph
Moving Operating Speed
Patrol Speed range is 20 mph to 100 mph in highway mode and 12 mph to 80 mph in city mode.
In opposite direction mode, Target Speed range is 12 mph up to a closing speed of 200 mph.
In same direction mode, Target Speed range is patrol speed ±70%.
Operating Temperature Range
-30C (-22F) to 60C (+140F)
Automatic Performance Check
The radar automatically and invisibly checks itself for proper operation
Speed Display Windows
Target Speed (red, on the left side of the display)
Fastest Target Speed (yellow, in middle of display
Patrol Speed (green, on the right side of display)
Range displays Two LED bar graphs to inform user of target distances. Each segment of the display corresponds to 100 yards of distance
Read More

How Can We Help?

Fill out the form to contact a local sales representative or to get a quote.

Request Quote

Ranger EZ also includes SafetyZone™, MPH’s officer safety alert mechanism. SafetyZone activates an audible warning to alert officers to potentially life-threatening high-speed vehicles approaching from behind their patrol vehicle when the officer is standing on or near the roadway.

A zone of protection can be predefined, and Ranger EZ will alert if a vehicle approaches and does not slow down. SafetyZone can provide several seconds of warning, allowing the officer to assess the situation and move to a safer location if warranted and distance measurement prevents false alarms from distant, higher speed vehicles that are too far away to be a threat.

Features

  • New EasyTrack™ ranging bar
  • Automatic Same Direction™ (ASD) mode
  • Moving and stationary modes
  • Patrol speed harmonic indicator
  • Integrated video interface for MPH and most competitors in-car video systems
  • Small display with easy-to-read LED displays
  • Dual audio tones for tracking fastest and strongest targets simultaneously
  • Weatherproof all-black antennas
  • Continual internal diagnostic self-test
  • Ergonomic wired or wireless remote control
  • Optional motorcycle upgrade

Ranger EZ
