StreetScout Speed Trailer

Save lives - Improve Community Relations

Easy to Deploy Quickly

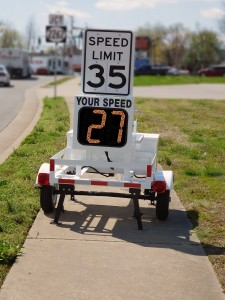

The StreetScout trailer increases speed awareness and reduces speeding in problem areas. Our StreetScout radar speed trailer is ideal for narrow neighborhood streets, near schools as well as in areas with speeding problems and high pedestrian traffic.

Specifications

Model

STREETSCOUT RADAR Display Trailer

Trailer Dimensions

52” W x 90” L x 48” H (posted sign down for transport)

52”W x 48” L x 72” H (posted sign deployed, tongue removed)

Weight w/ 1 battery

~ 425 lbs. (no other accessories installed)

Display

12” Amber LED display with 2 ½ digits (leading 1) with vandal resistant Lexan® clear display window
Speed Sign
MUTCD compliant 18" x 24" sign with interchangeable placards from 5 to 75
Power
One (1) 80 Amp-hour Group 24 marine battery and 8 amp charger. (2nd battery optional w/ upgrade to 20 amp charger)

50 W solar (optional)
Tires/Wheels
8" wheels with ST rated 4.8-8 tires. 1 locking lug each wheel
Secure Enclosure
13" x 14.3" x 37.5" locking enclosure for up to two (2) batteries, battery charger and storage
Frame
2" square steel tubing, 11 gauge, welded construction

4 retractable/adjustable stabilizer jacks
Finish
Rust-resistant undercoat with graffiti-resistant powder coat finish
Read More

How Can We Help?

Fill out the form to contact a local sales representative or to get a quote.

Request Quote

Keeping your streets safe 24/7

The StreetScout is designed and engineered for use in cities, suburban and rural applications. At only 425 lbs and 48 inches square (not including tongue), the StreetScout is easy to tow and set up by one person in most cases. The smaller size fits applications where a larger trailer is not practical. Get most of the features of much larger, more expensive speed trailers – for nearly half the cost.

Features

Key Features

  • 12” high-intensity Amber LED display
  • MUTCD compliant speed limit sign with interchangeable numbers from 5 to 75
  • Secure battery enclosure
  • Flashing digits overspeed violator alert
  • Wireless configuration
  • 18" x 24" posted speed limit sign
  • Push button on/off switch
  • Ambient light sensor for automatic display brightness adjustment
  • 8" wheels with ST rated tires and one locking lug each
  • One (1) 80 Amp-hour Group 24 Marine battery (2nd battery optional)
  • Integrated smart battery charger
  • AC outlet for charging battery
  • 24 hour on/off timer
  • High/low speed blanking
  • Battery level indicator in LED display

Optional Features

  • Traffic statistics with SpeedView™ analysis software
  • Red/blue, blue/blue, red/red, or white/white overspeed violator strobes
  • Trailer cover
  • LED lights upgrade
  • 2nd 80 Amp-hour Group 24 marine battery with 20A charger upgrade
  • 50 W solar panel
  • Spare tire
  • Galvanized wheels upgrade
  • Cable wheel lock
  • 2" ball hitch lock
